Converting Commercial Floor Drains To ebbe Square Floor Shower Drains
3” PVC or ABS light commercial shower floor drains with round grates similar to this can now be adapted to Ebbe

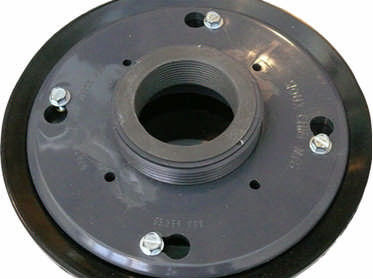

3” PVC/ABS Light Commercial Shower Floor Drain With A Round Grate
3” PVC/ABS Light Commercial Shower Floor Drain With A Round Grate
You use an Ebbe E205 Riser ID Bond Adapter it was designed for converting
a round shower drain to an Ebbe square shower drain.
Here’s how the conversion is accomplished
1. Start by cutting off and keeping 1″ to 1 ½” of the threaded barrel from
the 3″ drain riser as shown.
3″ Drain Riser
Cutting Off Threaded Barrel
3″ Riser Barrel Section
2. Insert and bond the E205 adapter into the inside diameter of the uncut end of the 3” riser barrel section using an ABS or PVC cement depending on your barrel section material.
E205 Ebbe Adapter Assembly
3. Thread this new adapter assembly into the 3” drain’s clamping plate
4. Thread the ebbe E4400 into the E205 as shown.
Converted 3” PVC/ABS Light Commercial Shower Floor Drain With Round Grate To An Ebbe America Square Drain Grate
5. Conversion complete.
Square Drain Body – ABS
